    Technical Drawing

    Spec

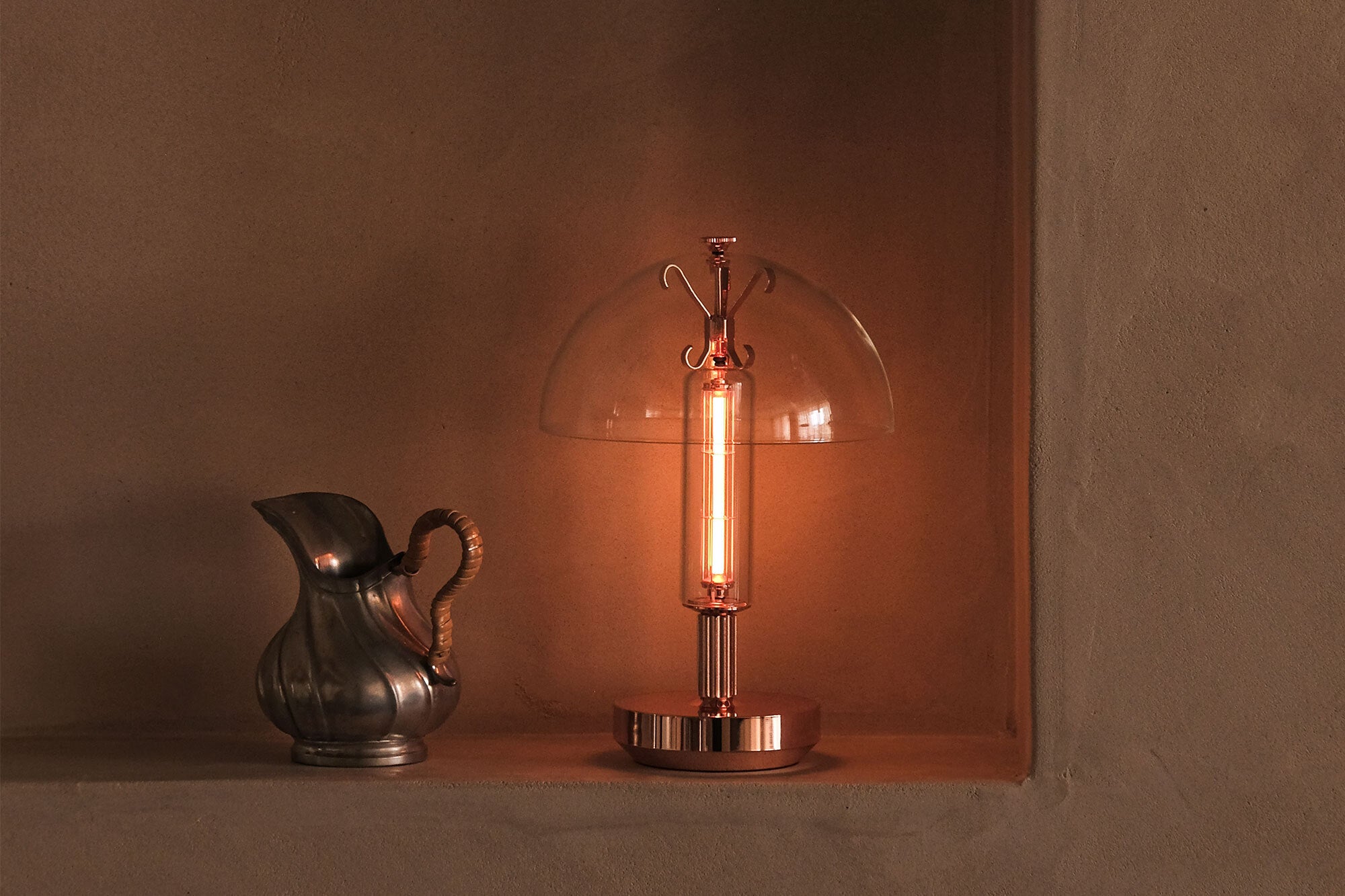

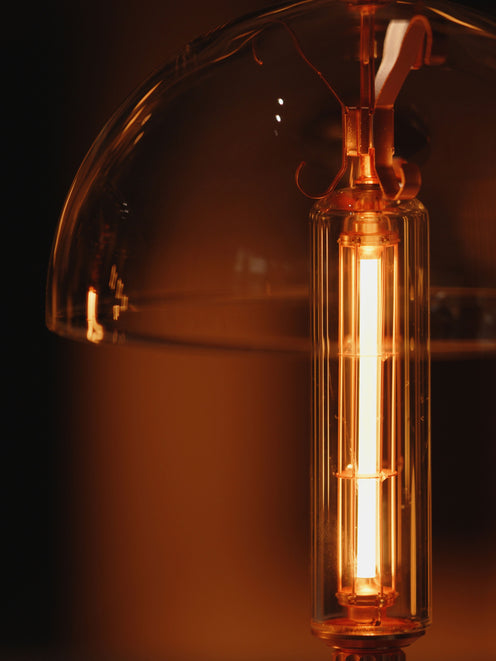

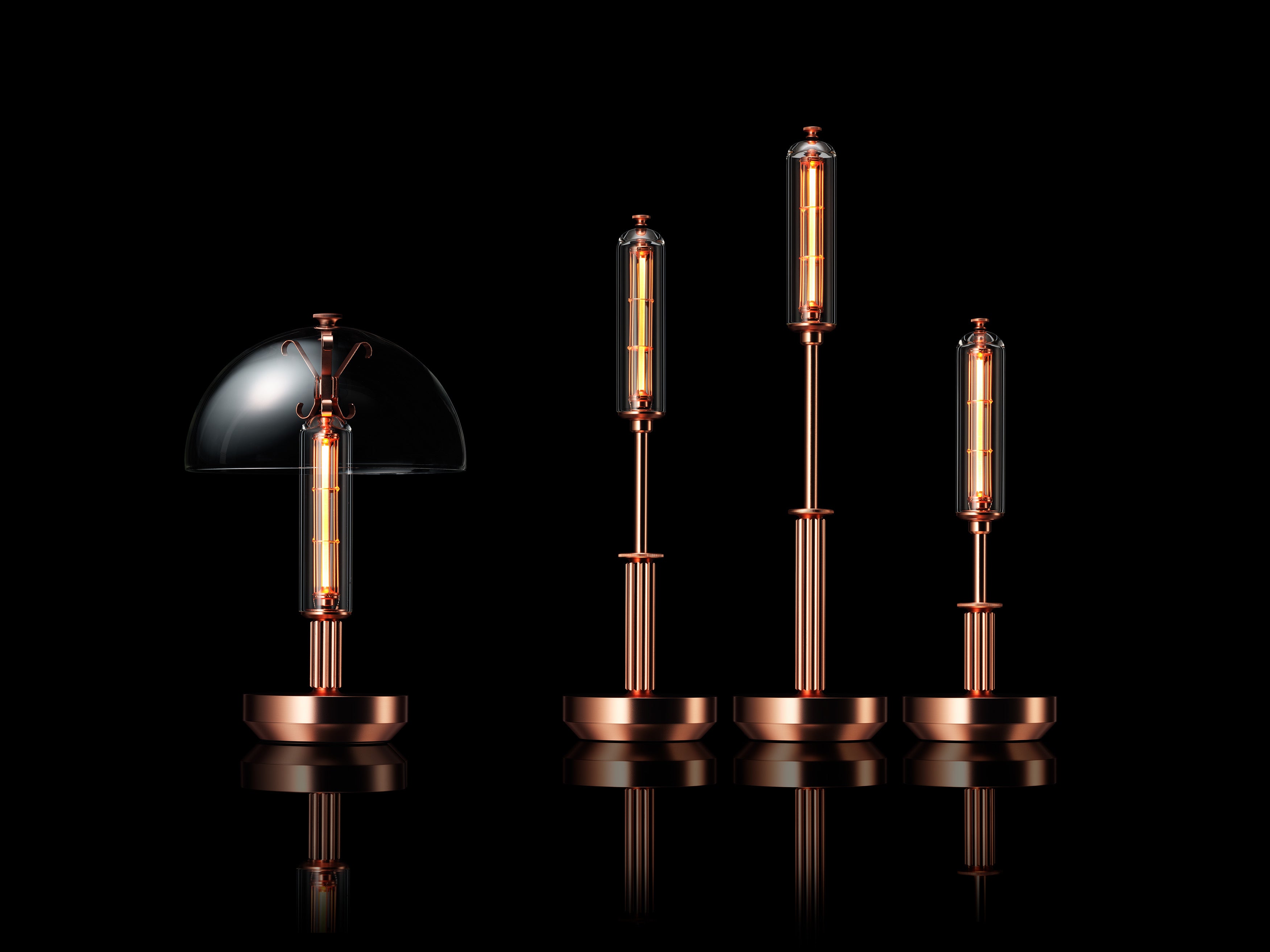

    Barcarolle 60 / Copper
    Product name
    Barcarolle 60 Copper
    Part Number
    BR1-60CP
    Main materials
    Body: Brass, aluminum, silicone rubber, glass Charging stand: Zinc alloy, silicone rubber, ABS
    Dimensions (mm)
    Outer diameter: Φ116 Height: 171
    Weight (g)
    457
    light source
    LED
    Dimming Mode
    LOW/MID/HIGH/GLOW-MODE
    Continuous lighting time
    64/32/16/16
    Color temperature (k)
    2000K
    Charging method/time
    USB charging: approx. 3 hours
    power supply
    Rechargeable Li-ion battery, 3.7V/190mAh
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction.
    accessories
    Glass dome, USB connection cable (Type-C), charging stand

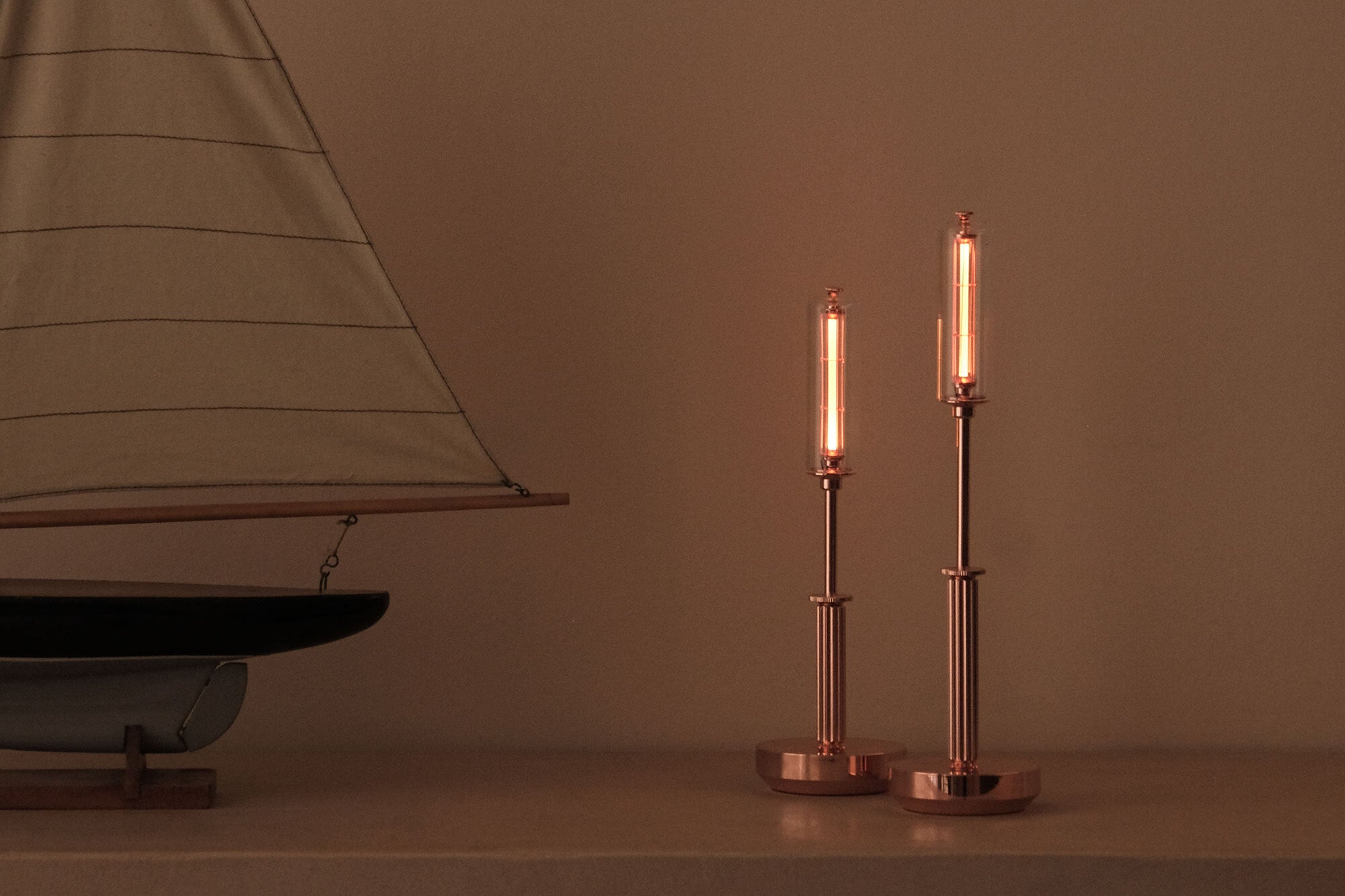

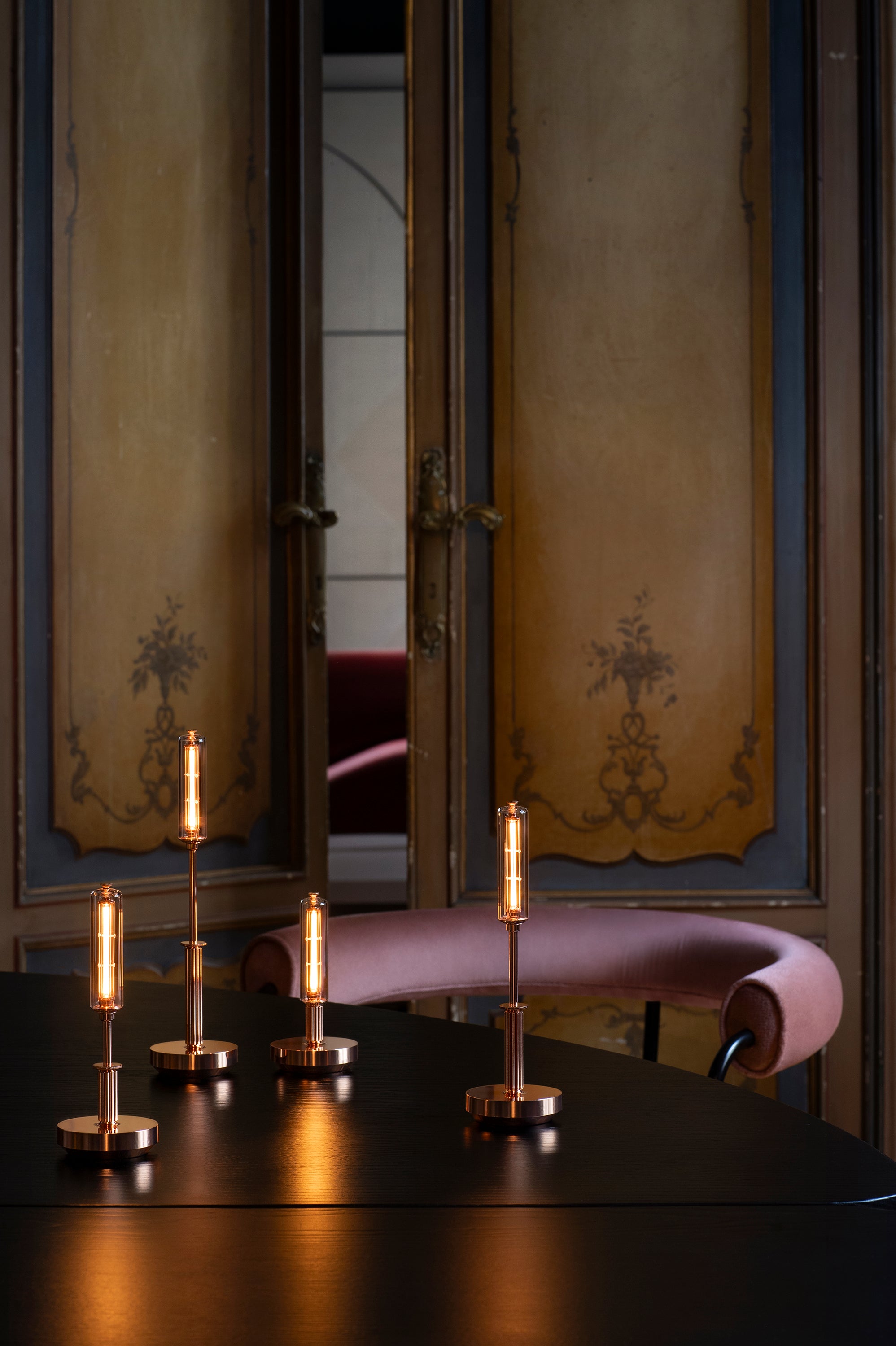

    Barcarolle 183S / Copper (Barcarolle 183S / Copper) *Available Exclusively at Our Gallery
    Product name
    Barcarolle 183S/ Copper
    Part Number
    BR1-183SCP
    Main materials
    Body: Brass, aluminum, silicone rubber, glass Charging stand: Zinc alloy, silicone rubber, ABS
    Dimensions (mm)
    Outer diameter: Φ68 Height: 183
    Weight (g)
    378
    light source
    LED
    Dimming Mode
    LOW/MID/HIGH/GLOW-MODE
    Continuous lighting time
    64/32/16/16
    color temperature
    2000K
    Charging method/time
    USB charging: approx. 3 hours
    power supply
    Rechargeable Li-ion battery, 3.7V/190mAh
    Waterproof performance
    Equivalent to IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction.
    accessories
    USB connection cable (Type-C), charging stand

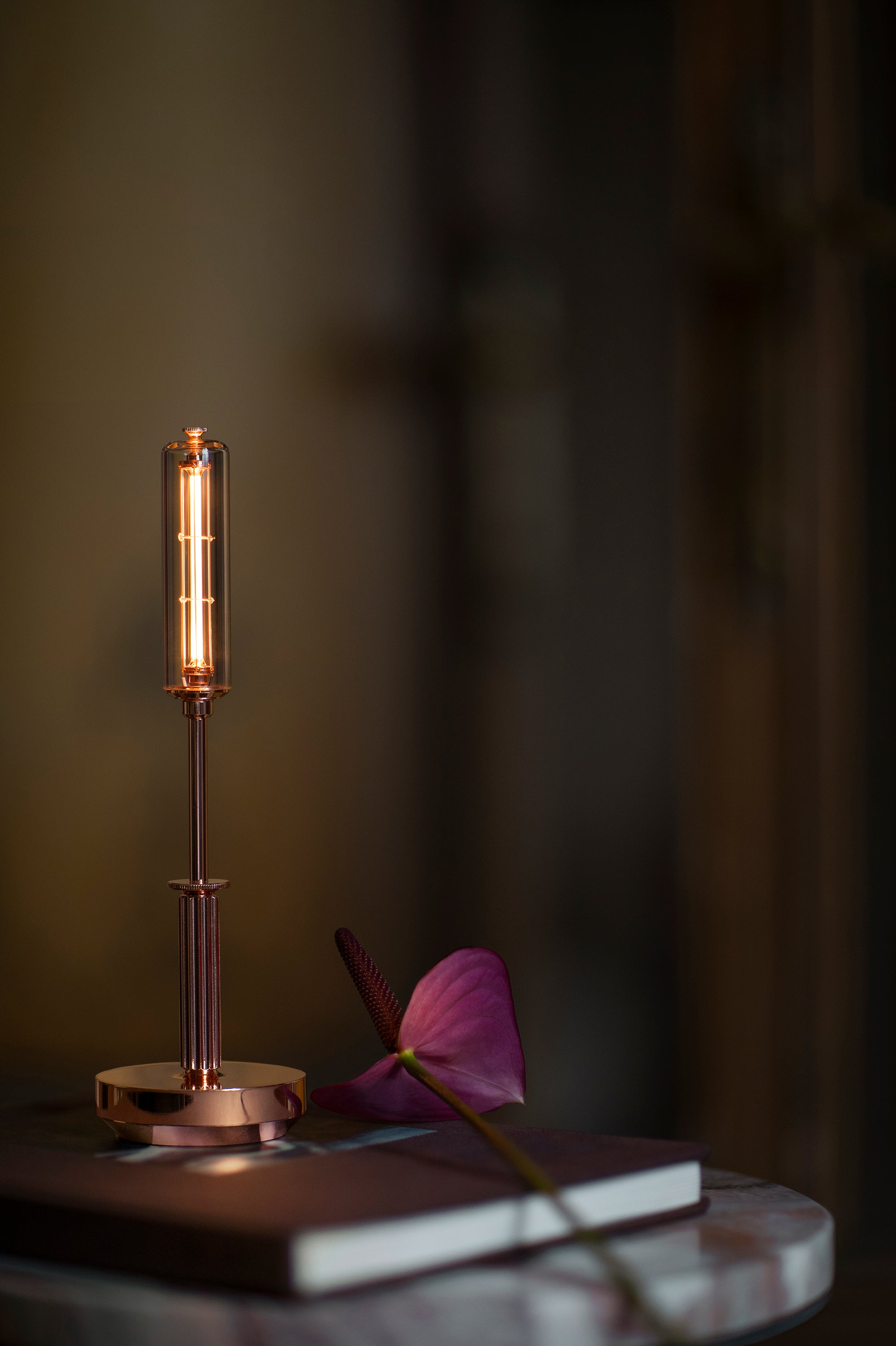

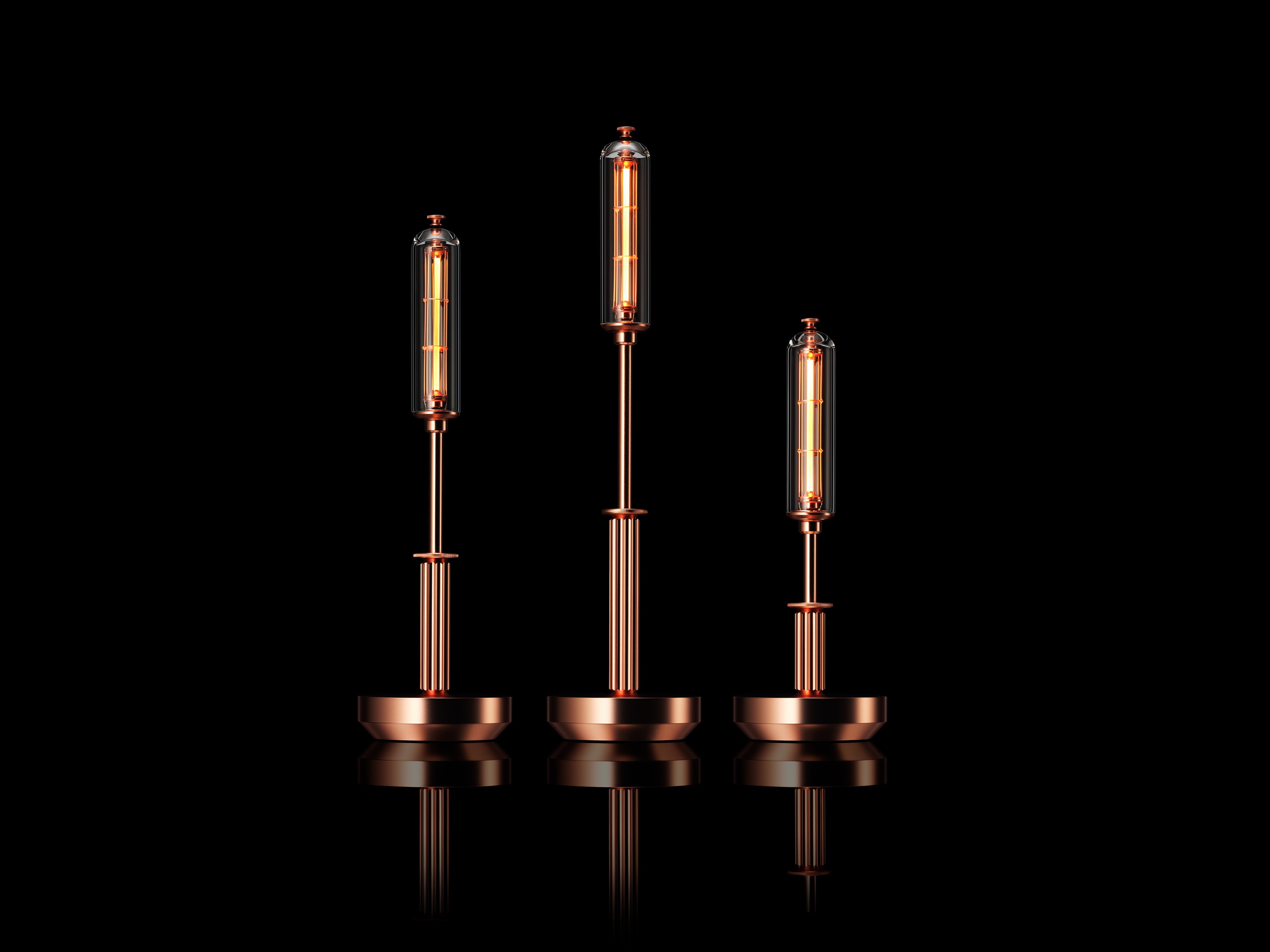

    Barcarolle 227M / Copper
    Product name
    Barcarolle 227M/ Copper
    Part Number
    BR1-227MCP
    Main materials
    Body: Brass, aluminum, silicone rubber, glass Charging stand: Zinc alloy, silicone rubber, ABS
    Dimensions (mm)
    Outer diameter: Φ68 Height: 227
    Weight (g)
    378
    light source
    LED
    Dimming Mode
    LOW/MID/HIGH/GLOW-MODE
    Continuous lighting time
    64/32/16/16
    color temperature
    2000K
    Charging method/time
    USB charging: approx. 3 hours
    power supply
    Rechargeable Li-ion battery, 3.7V/190mAh
    Waterproof performance
    Equivalent to IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction.
    accessories
    USB connection cable (Type-C), charging stand
    Barcarolle 265L / Copper (Barcarolle 265L / Copper) *Available Exclusively at Our Gallery
    Product name
    Barcaroll 265L / Copper
    Part Number
    BR1-265LCP
    Main materials
    Body: Brass, aluminum, silicone rubber, glass Charging stand: Zinc alloy, silicone rubber, ABS
    Dimensions (mm)
    Outer diameter: Φ68 Height: 265
    Weight (g)
    383
    light source
    LED
    Dimming Mode
    LOW/MID/HIGH/GLOW-MODE
    Continuous lighting time
    64/32/16/16
    color temperature
    2000K
    Charging method/time
    USB charging: approx. 3 hours
    power supply
    Rechargeable Li-ion battery, 3.7V/190mAh
    Waterproof performance
    Equivalent to IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction.
    accessories
    USB connection cable (Type-C), charging stand

    Designer

    Yoshiki Matsuyama

    With his subtle and warm formative expression, Yoshiki Matsuyama has worked on various projects mainly in the field of product design, based on context derived from elements of society, everyday life, and beauty of nature. Other than product design of lifestyle goods, he has provided designs for a wide range of clients, such as utilization of traditional craft techniques, collaborative research projects with a university, and a sustainability project focusing on social and environmental issues. His designs, including individual experimental works, have been presented at various design events both in Japan and globally, such as the Spazio Rosanna Orlandi and Salone Satellite at Milano Design Week.
    In parallel with these activities, he has been an in-house designer at the Integrated Design Center of Mitsubishi Electric Corporation since 2021. From industrial design of public equipment and home appliances, to solution design focusing on the lifestyle of developing countries, he is involved in research and development in a variety of fields.
    He has won numerous awards, such as the Toyama Design Competition (Grand Prix), Lexus Design Award 2014 (Winner), and the GOOD DESIGN AWARD. He is also a part-time lecturer at Hosei University.
