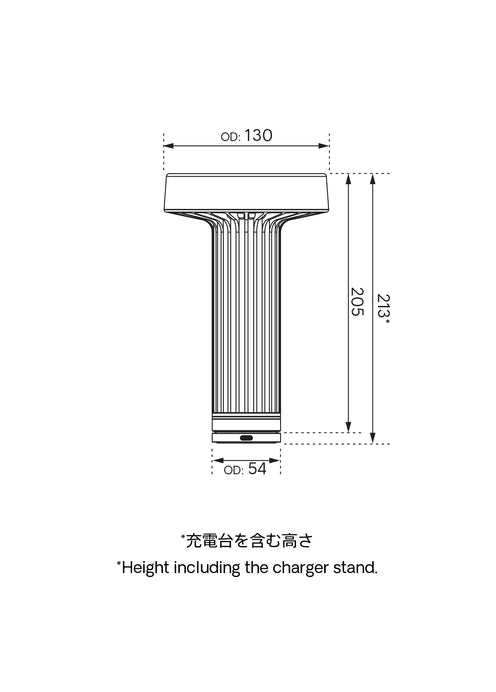

    Technical Drawing

    Spec

    FOTICA / Silver
    Product Name
    FOTICA / Silver
    Product Code
    FT1-SLV
    Main materials
    Main Body/interior : Aluminum, Plycarbonate, acrylic, silocone rubber
    Charger stand:Zinc alloy, silicone rubber,ABS / Baked painting(Black)
    Dimensions(mm)
    Outer diameter φ130 Height 205
    Weight(g)
    950
    Light source
    LED
    Dimming level
    5 level of dimming
    Battery run time(h)
    Battery Power Mode : EX-LOW 240 / LOW 90 / MID 38 / HIGH 12 / EX-HIGH 5
    USB Power Mode : Until Battery exhausted
    Power consumption(w)
    0.05 - 3.5
    Color temperature(K)
    1800 -2500
    Recharging time
    Approx. 6 hours
    Power supply
    Rechargable Lithium-ion battery 3.6V/5100mAh
    Water proofing
    IP66 equivalent*(Charger stand is not waterproof)
    Accessory
    USB connection cable, charging stand
    FOTICA / Indigo
    Product Name
    FOTICA / Indigo
    Product Code
    FT1-IDG
    Main materials
    Main Body/interior : Aluminum, Plycarbonate, acrylic, silocone rubber
    Charger stand:Zinc alloy, silicone rubber,ABS / Baked painting(Black)
    Dimensions(mm)
    Outer diameter φ130 Height 205
    Weight(g)
    950
    Light source
    LED
    Dimming level
    5 level of dimming
    Battery run time(h)
    Battery Power Mode : EX-LOW 240 / LOW 90 / MID 38 / HIGH 12 / EX-HIGH 5
    USB Power Mode : Until Battery exhausted
    Power consumption(w)
    0.05 - 3.5
    Color temperature(K)
    1800 -2500
    Recharging time
    Approx. 6 hours
    Power supply
    Rechargable Lithium-ion battery 3.6V/5100mAh
    Water proofing
    IP66 equivalent*(Charger stand is not waterproof)
    Accessory
    USB connection cable, charging stand
    FOTICA / Rosé
    Product Name
    FOTICA / Rosé
    Product Code
    FT1-ROS
    Main materials
    Main Body/interior : Aluminum, Plycarbonate, acrylic, silocone rubber
    Charger stand:Zinc alloy, silicone rubber,ABS / Baked painting(Black)
    Dimensions(mm)
    Outer diameter φ130 Height 205
    Weight(g)
    950
    Light source
    LED
    Dimming level
    5 level of dimming
    Battery run time(h)
    Battery Power Mode : EX-LOW 240 / LOW 90 / MID 38 / HIGH 12 / EX-HIGH 5
    USB Power Mode : Until Battery exhausted
    Power consumption(w)
    0.05 - 3.5
    Color temperature(K)
    1800 -2500
    Recharging time
    Approx. 6 hours
    Power supply
    Rechargable Lithium-ion battery 3.6V/5100mAh
    Water proofing
    IP66 equivalent*(Charger stand is not waterproof)
    Accessory
    USB connection cable, charging stand

    Download

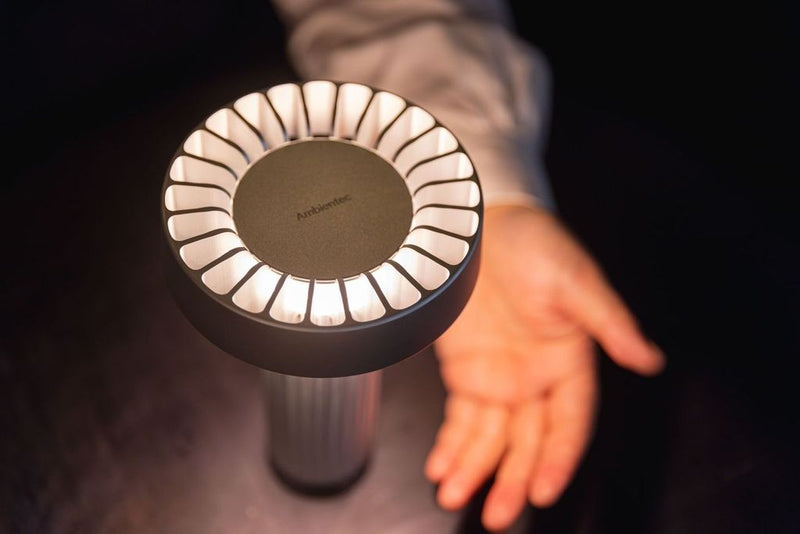

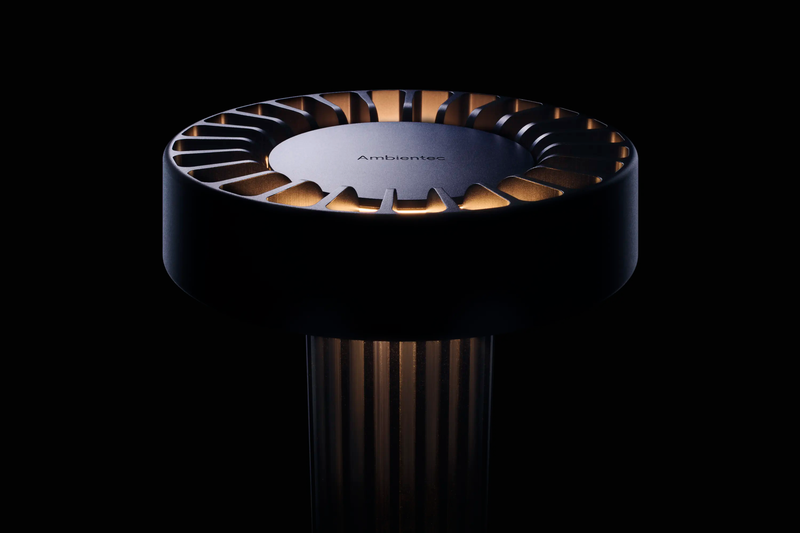

    The main body is characterized by its one-piece aluminum molding. The structure of the inner and outer sides of the lamp is a unique design that functions as a lampshade while maintaining its strength and heat dissipation function. The light source emanating from the lamp through the body of the lamp spreads softly upward into the space, and casts gentle light on the table while drawing a beautiful gradation in the grooves of the grip.

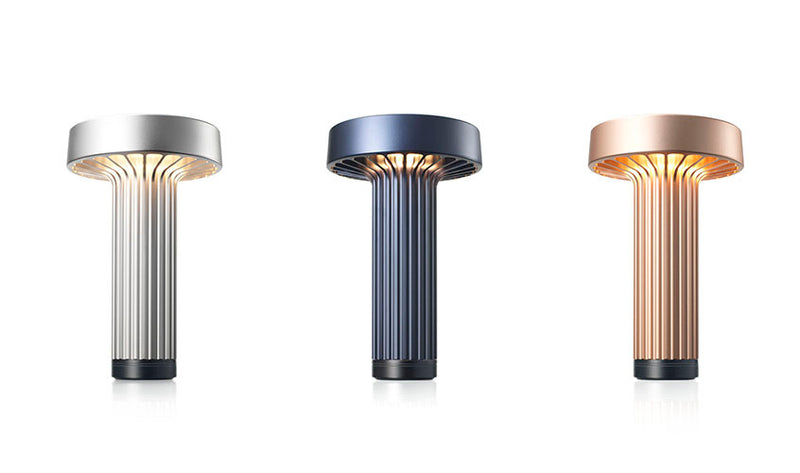

    Available in three anodized aluminum colors, it can be coordinated in a variety of spaces. In addition, as a lighting fixture with high waterproof performance and a battery mechanism that withstands prolonged use, it is a tough product that can be used in emergencies such as disasters and in any environment.

    The project proposes an innovative concept that takes a comprehensive view of the product and its entire manufacturing environment, including the use of aluminum, a recyclable material, in the manufacturing process, creating an efficient process that reduces energy consumption and environmental impact.

    Designer

    Kensaku Oshiro

    Kensaku Oshiro graduated from the Scuola Politecnica di Design in Milan in 1999 and, after significant work experiences at renowned design studios in Milan and London, he founded his own studio in Milan in 2015. He sees each project as a unique challenge to be solved on its own terms, distilling limitless possibilities down to a single ideal solution. Drawing on his multicultural experience, his work extends across a variety of fields, from product design to architectural projects, from high-quality craftsmanship to industrial-scale production.



    He is the recipient of the Rising Talent Awards 2018, Wallpaper Design Award 2022, and has been nominated for EDIDA 2016 "Young designer talent" by the Japanese version of Elle Deco, EDIDA 2022 "Designer of the year" by EDIDA 2022.



    kensakuoshiro.com
