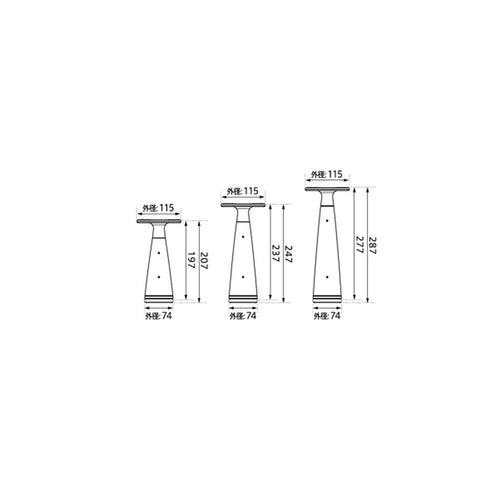

    Technical Drawing

    Spec

    Vosco / Maple S (Vosco / Maple S) *Available Exclusively at Our Gallery
    Product name
    Vosco / Maple S
    Part Number
    VC1-MPS
    Main materials
    Body: Wood (maple), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 197, charging stand: outer diameter 74, height 10
    Weight (g)
    820
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    35/280/570/1430
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand
    Vosco / Maple M
    Product name
    Vosco / Maple M
    Part Number
    VC1-MPM
    Main materials
    Body: Wood (maple), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 237, charging stand: outer diameter 74, height 10
    Weight (g)
    890
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    20/190/380/980
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand
    Vosco / Maple L (Vosco / Maple L) *Available Exclusively at Our Gallery
    Product name
    Vosco / Maple L
    Part Number
    VC1-MPL
    Main materials
    Body: Wood (maple), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 277, charging stand: outer diameter 74, height 10
    Weight (g)
    960
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    12/130/270/690
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand
    Vosco / Walnut S (Vosco / Walnut S) *Available Exclusively at Our Gallery
    Product name
    Vosco / Walnut S
    Part Number
    VC1-WNS
    Main materials
    Body: Wood (walnut), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 197, charging stand: outer diameter 74, height 10
    Weight (g)
    820
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    35/280/570/1430
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand

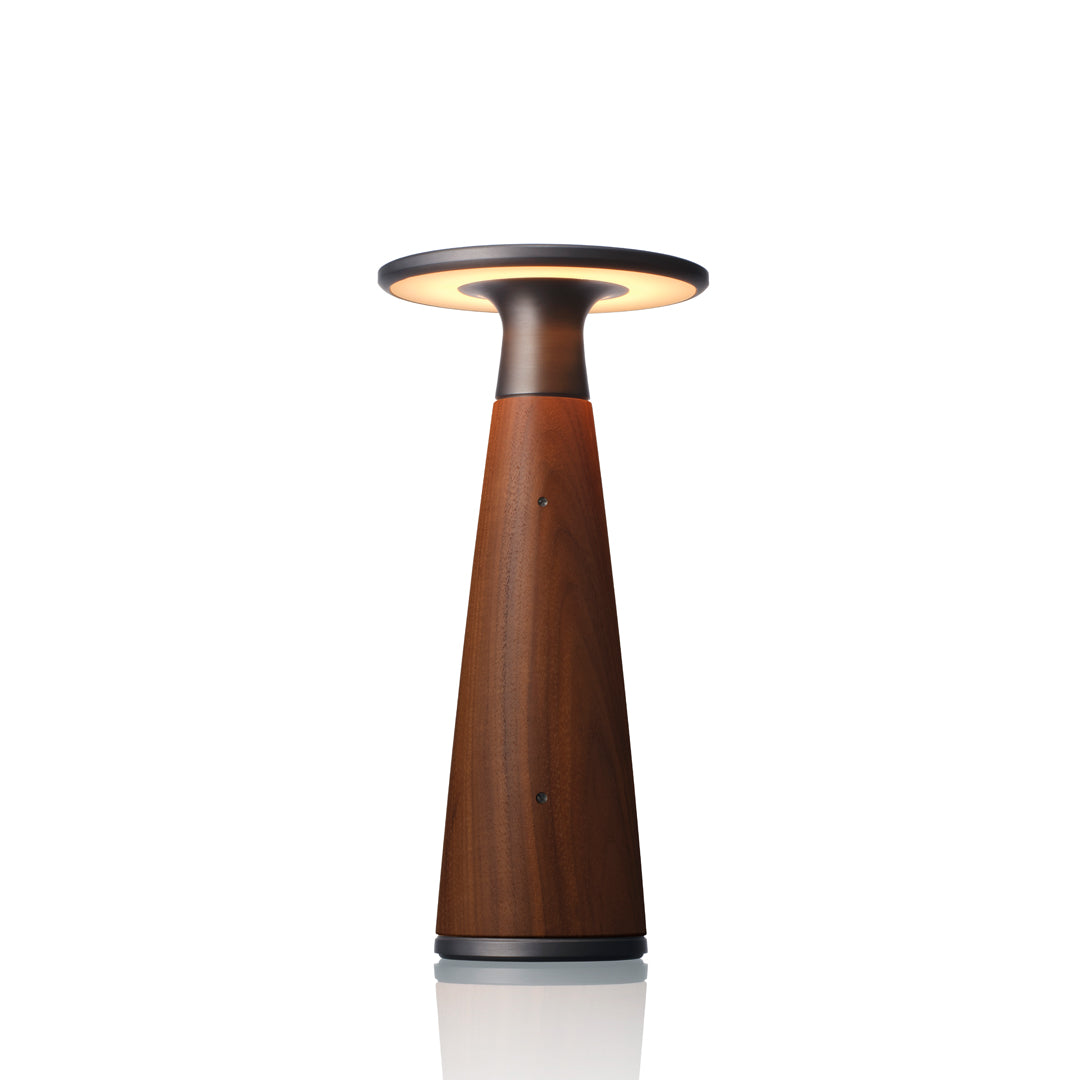

    Vosco / Walnut M
    Product name
    Vosco / Walnut M
    Part Number
    VC1-WNM
    Main materials
    Body: Wood (walnut), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 237, charging stand: outer diameter 74, height 10
    Weight (g)
    890
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    20/190/380/980
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand
    Vosco / Walnut L (Vosco / Walnut L) *Available Exclusively at Our Gallery
    Product name
    Vosco / Walnut L
    Part Number
    VC1-WNL
    Main materials
    Body: Wood (walnut), zinc alloy, polycarbonate, acrylic resin, silicone rubber Charging stand: Zinc alloy, ABS, silicone rubber
    Surface Treatment
    Body: Urethane coating (grip), black plating, brushed finish Charging stand: Baked finish (black)
    Dimensions (mm)
    Main unit: outer diameter Φ115, height 277, charging stand: outer diameter 74, height 10
    Weight (g)
    960
    light source
    LED
    Color rendering index
    Ra95 or higher
    Dimming
    LOW/MID/HIGH/EX-HIGH
    Continuous lighting time (h)
    180/45/15/5
    Power consumption (W)
    0.1/0.5/1.4/4
    illuminance
    12/130/270/690
    Color temperature (K)
    1700/2000/2200/2400
    Charging method/time
    USB charging: approx. 9 hours
    power supply
    Rechargeable lithium-ion battery, 3.6V/6600mAh (23.76Wh)
    Waterproof performance
    IP66* (The charging base is not waterproof) *IP66: Indicates a level of protection that prevents fine particles from entering the interior and prevents harmful effects from strong water jets from any direction. *Like other wooden products, the wooden grip part will leave marks if left wet. If it gets wet, wipe off any moisture and allow it to dry naturally.
    accessories
    USB connection cable (Type-C), charging stand

    Making the most of the forest's bounty

    In the past, Satoyama forests were utilized and circulated in line with people's lives. However, with the fuel revolution and the spread of imported wood, their value gradually diminished, and the forests fell into disrepair as care ceased. Vosco hopes to bring Satoyama resources back into people's lives once again by actively utilizing wood with natural scars, such as curved or knotty wood, which has few opportunities to be used and has been turned into fuel or waste.

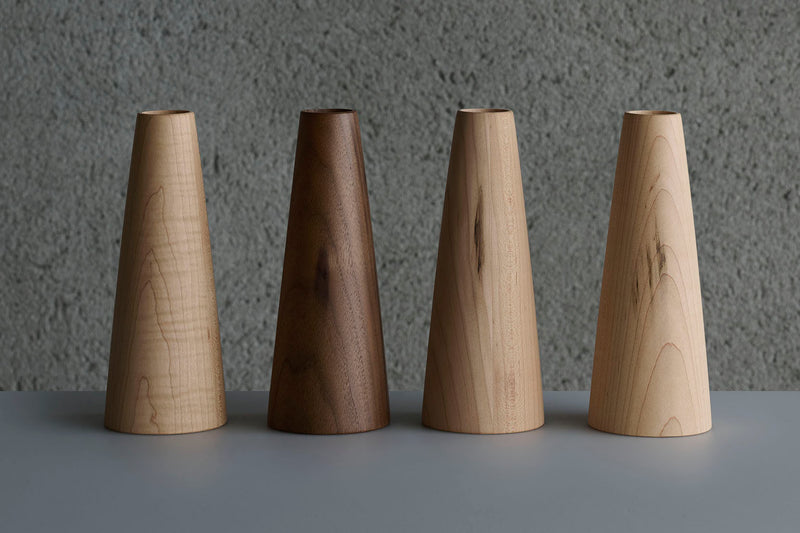

    About natural scars

    At Vosco, we actively use wood that would otherwise be discarded, viewing the unique characteristics of wood that is not considered useful in traditional furniture making, such as noticeable knots, bent wood, and insect bites, as natural marks.We accept the unique appearance of natural materials as they are and finish them so that you can love their appearance and use them for a long time.

    Commitment to the quality of light

    The newly developed Fresnel lens produces a soft, uniform light. Even when placed on glass or polished stone, the LED's characteristic graininess is invisible, reducing glare and creating a more natural light appearance. Furthermore, a full charge lasts up to 180 hours. Simply touch the touch sensor to adjust the light to four levels, from a warm glow similar to a candle flame to a 2400K brightness suitable for eating or reading.

    Built to last

    Vosco has an internal structure that does not put stress on the wood and is designed so that each part can be repaired or replaced.

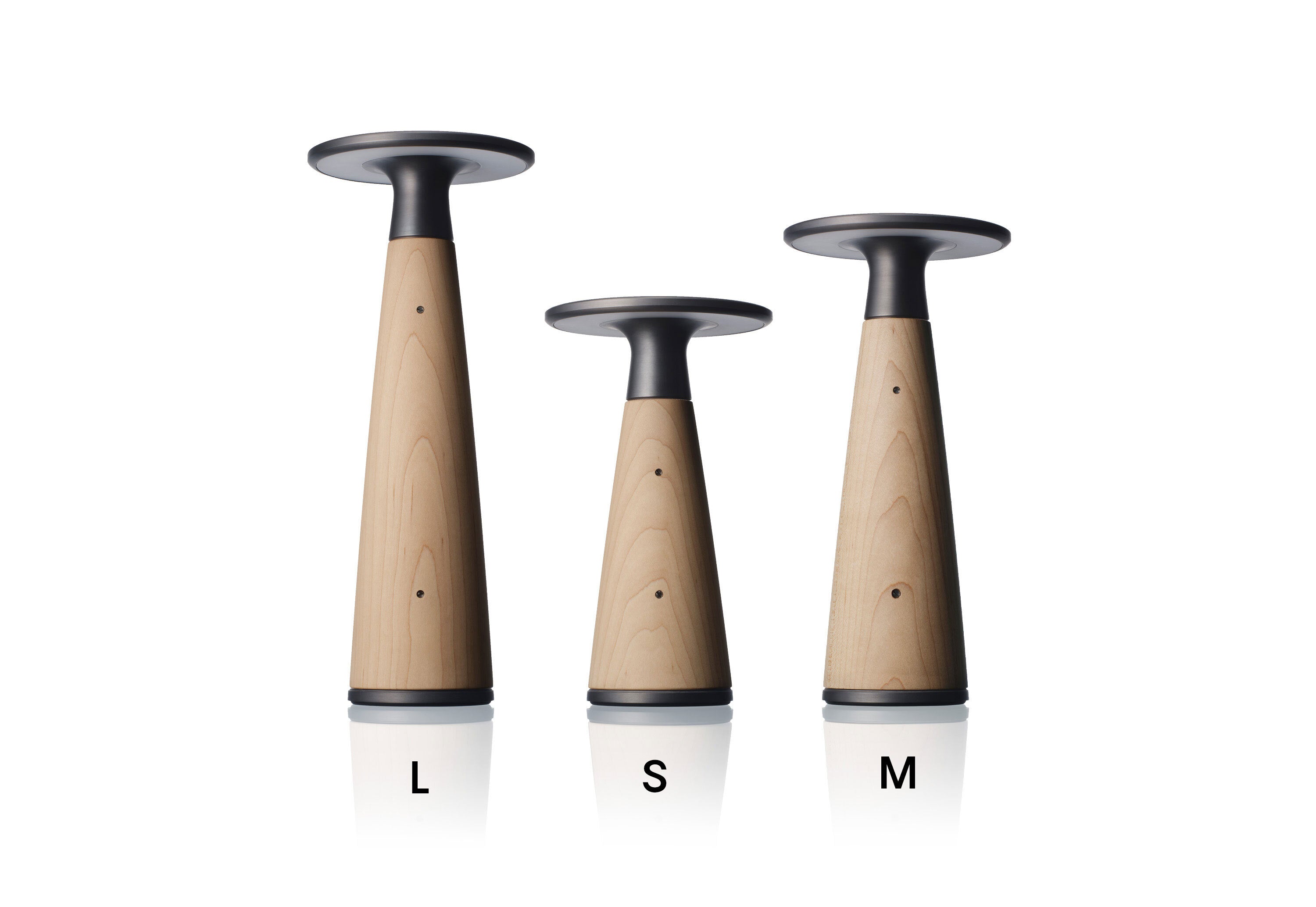

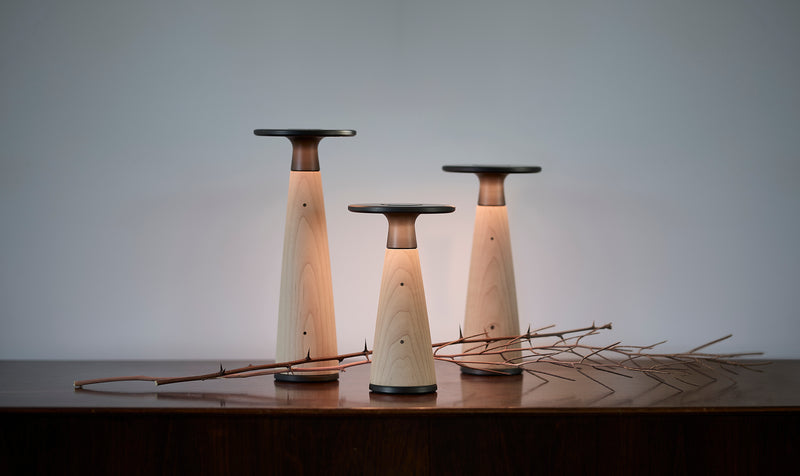

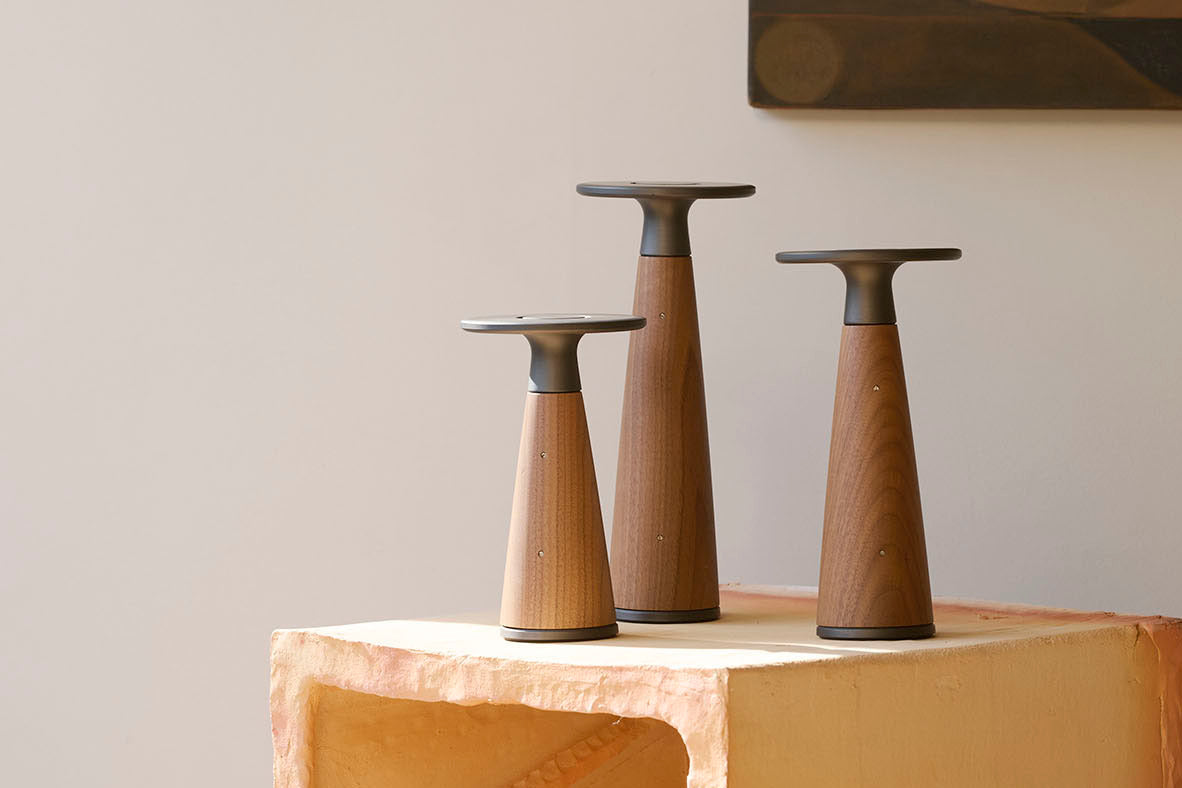

    Furthermore, the central wooden part can be switched between three sizes (large, medium, and small) to suit different uses and occasions, and can be chosen from two types of wood (maple and walnut), which can be replaced over time. We want the light to be a constant companion, even as the user's lifestyle changes. This is the thought behind the design.

    Designer

    Nao Tamura

    Nao Tamura is a designer in the most modern terms. Her talents cross-over cultures, languages, disciplines, concepts and styles with consistency of smart thinking always at the heart of their work. She is truly global in her insights and execution. As a product of Tokyo and New York City creative communities, her solutions are equally at ease in the world of 2D and 3D, with an uncanny ability to find that emotional connection with the industry status-quo often insists upon. Her unique solutions are more than simply design and possess a rare balance of innovation and beauty.

    Nao Tamura has also received a number of prestigious awards including: iF Design Award, Red Dot Design Award, Industrial Design Excellance Awards (Gold), Milano Salone Satellite Award (1st prize) and so on.
