Technical Drawing

Spec
hymn Black(ヒム/ブラック)
- product name
- hymn Black
- product code
- HM-01B
- main materials main body
- Aluminium,Silicone rubber,ABS

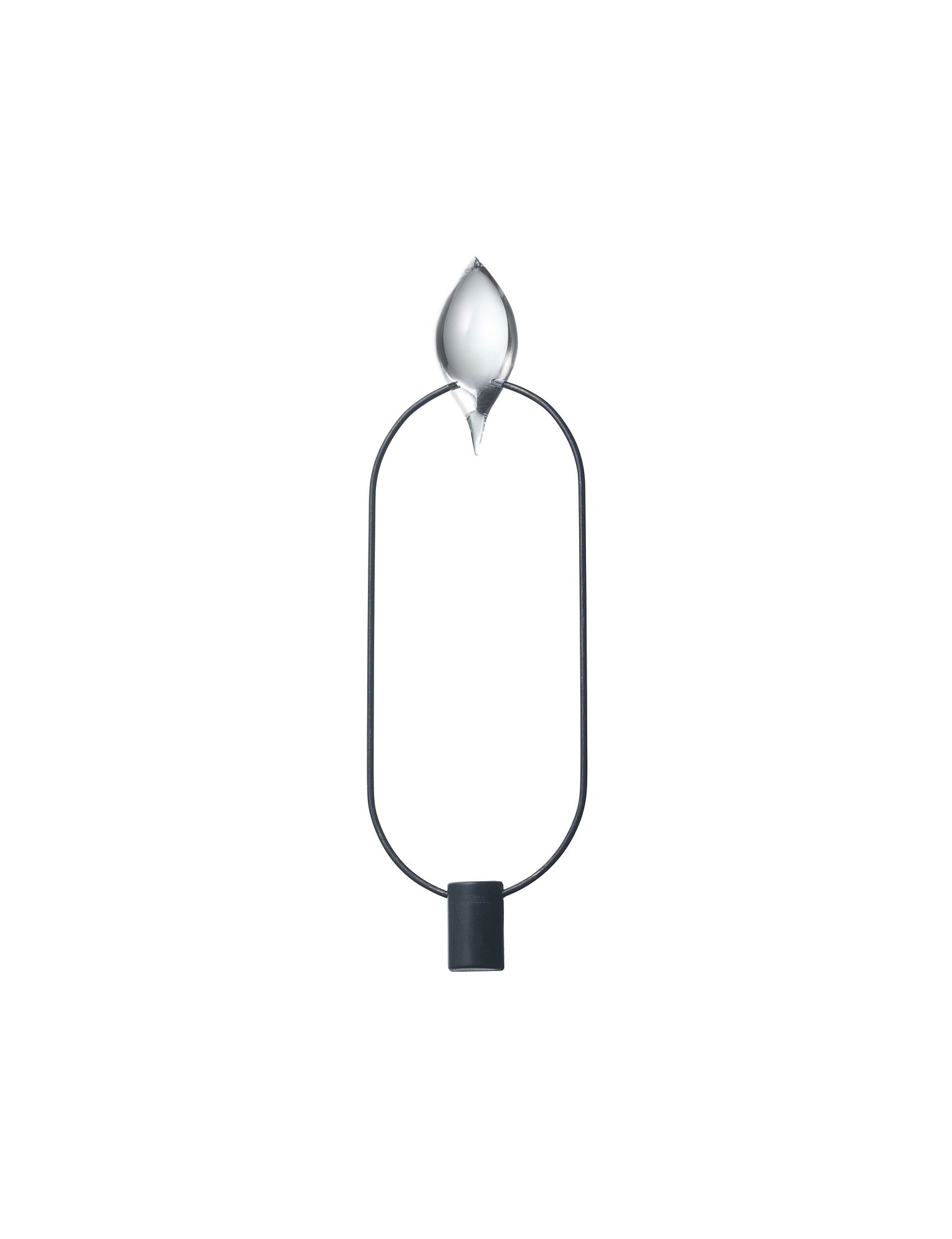

- pendulum lens
- Acrylic resin,Steel wire,ABS

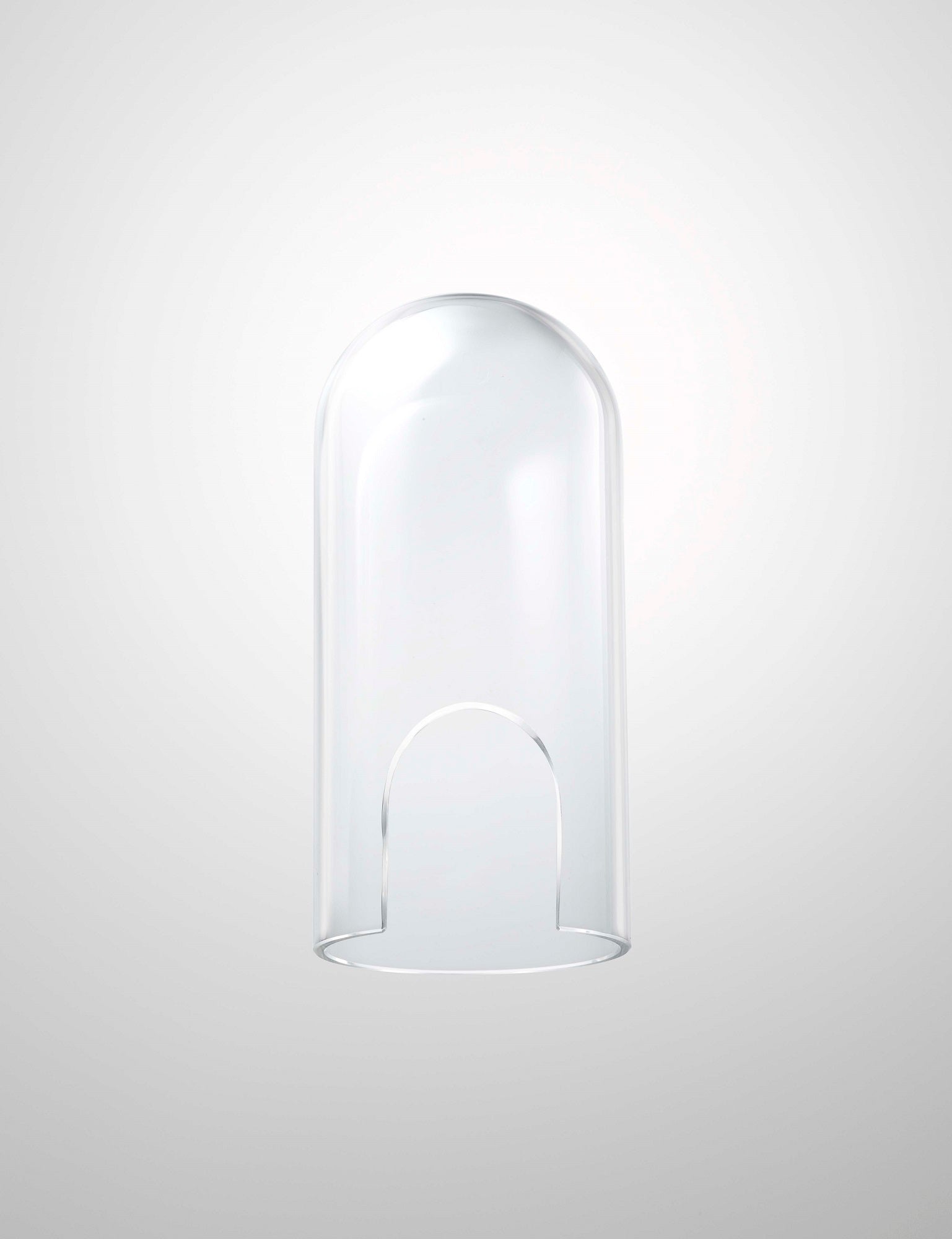

- glass shade
- Glass
- charger stand
- Zinc alloy,Silicon rubber,ABS
- surface treatment main body
- Anodizing(Black)
- pendulum lens (arm)
- Black plating
- charger stand
- Baked painting(Black)
- dimensions (mm)
- Outer diameter:Φ69 Wide:96 Height:177(Including charger stand)
- weight (g)
- 445(Including charger stand)/360(Excluding charger stand)
- light source
- LED
- dimming mode
- LOW-HIGH
- battery run time (h)
- 24-8
- charging method & time
- USB charging:Approx.3hours
- power supply
- Rechargeable lithium-ion battery, 3.7V / 190 mAh
- waterproofing
- IP66 equivarent*(charger stand and USB AC adapter are not waterproof)
hymn Gold(ヒム/ゴールド)
- product name
- hymn Gold
- product code
- HM-01G
- main materials main body
- Aluminium,Silicone rubber,ABS
- pendulum lens
- Acrylic resin,Steel wire,ABS
- glass shade
- Glass
- charger stand
- Zinc alloy,Silicon rubber,ABS
- surface treatment main body
- Gold plating
- pendulum lens (arm)
- Gold plating
- charger stand
- Baked painting(Black)
- dimensions (mm)
- Outer diameter:Φ69 Wide:96 Height:177(Including charger stand)
- weight (g)
- 445(Including charger stand)/360(Excluding charger stand)
- light source
- LED
- dimming mode
- LOW-HIGH
- battery run time (h)
- 24-8
- charging method & time
- USB charging:Approx.3hours
- power supply
- Rechargeable lithium-ion battery, 3.7V / 190 mAh
- waterproofing
- IP66 equivarent*(charger stand and USB AC adapter are not waterproof)
