TURN+

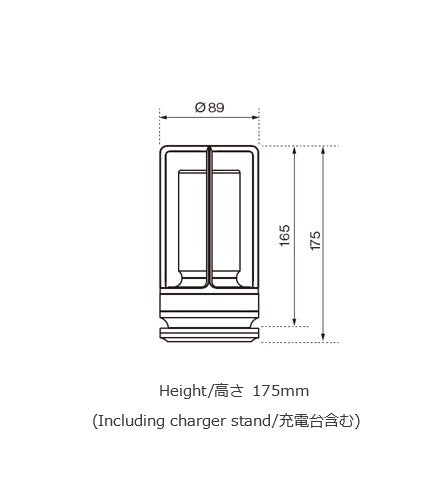

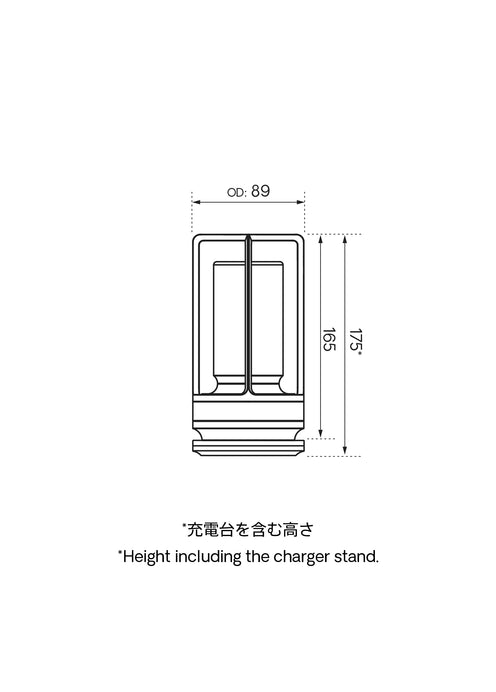

Technical Drawing

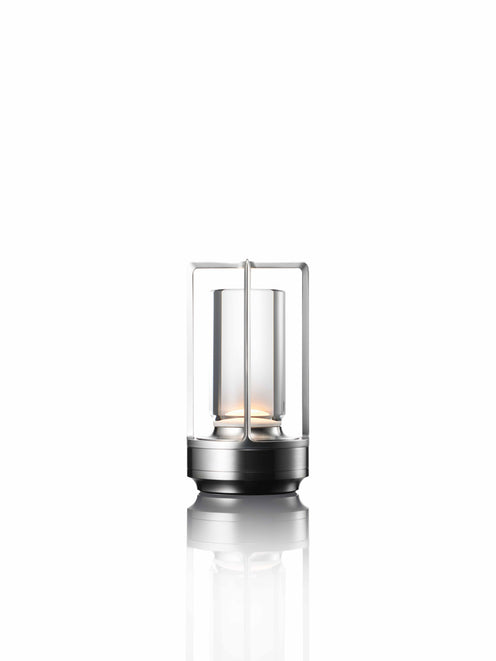

![](http://ambientec.co.jp/cdn/shop/files/edit_TURNplus_stainless_white2_on.jpg?v=1640146206&width=496)
Spec
TURN+ / Stainless Steel
- main materials
- Mainbody/charger stand:Stainless Steel,Cage:Zinc alloy,Other:ABS, silicone rubber, etc.
- surface treatment
- Mainbody/charger stand:Not processed,Cage:Chrome plating
- dimensions (mm)
- Outer diameter: 89,Height: 165(Main body),Height: 175 (Including charger stand)
- weight (g)
- 1350
- light source
- Ambientec original LED "sunny side up"
- color rendering index
- Ra95 or more
- dimming level
- LOW:0.03,MID:0.15,HIGH:0.6,EX-HIGH:1.5
- power consumption (W)
- LOW:1900,MID:1900,HIGH:2300,EX-HIGH:2400
- color temperature (K)
- LOW:500,MID:120,HIGH:30,EX-HIGH:12
- battery run time (h)
- USB charging: Approx. 6 hours
- charging
- Rechargeable lithium-ion battery, 3.6 V / 5200 mAh
- power supply
- 1P66 equivalent* (Charger stand and USB AC adapter are not waterproof)
- waterproofing
TURN+ / Brass
- main materials
- Mainbody/charger stand:Brass,Cage:Zinc alloy,Other:ABS, silicone rubber, etc.
- surface treatment
- Mainbody/charger stand:Clear coating,Cage:Gold plating
- dimensions (mm)
- Outer diameter: 89,Height: 165(Main body),Height: 175 (Including charger stand)
- weight (g)
- 1390
- light source
- Ambientec original LED "sunny side up"
- color rendering index
- Ra95 or more
- dimming level
- LOW:0.03,MID:0.15,HIGH:0.6,EX-HIGH:1.5
- power consumption (W)
- LOW:1900,MID:1900,HIGH:2300,EX-HIGH:2400
- color temperature (K)
- LOW:500,MID:120,HIGH:30,EX-HIGH:12
- battery run time (h)
- USB charging: Approx. 6 hours
- charging
- Rechargeable lithium-ion battery, 3.6 V / 5200 mAh
- power supply
- 1P66 equivalent* (Charger stand and USB AC adapter are not waterproof)
- waterproofing
TURN+ / Aluminum Black
- main materials
- Mainbody/charger stand:Aluminum,Cage:Zinc alloy,Other:ABS, silicone rubber, etc.
- surface treatment
- Mainbody/charger stand:Anodized oxide coating,Cage:Black baking
- dimensions (mm)
- Outer diameter: 89,Height: 165(Main body),Height: 175 (Including charger stand)
- weight (g)
- 1030
- light source
- Ambientec original LED "sunny side up"
- color rendering index
- Ra95 or more
- dimming level
- LOW:0.03,MID:0.15,HIGH:0.6,EX-HIGH:1.5
- power consumption (W)
- LOW:1900,MID:1900,HIGH:2300,EX-HIGH:2400
- color temperature (K)
- LOW:500,MID:120,HIGH:30,EX-HIGH:12
- battery run time (h)
- USB charging: Approx. 6 hours
- charging
- Rechargeable lithium-ion battery, 3.6 V / 5200 mAh
- power supply
- 1P66 equivalent* (Charger stand and USB AC adapter are not waterproof)
- waterproofing
Download

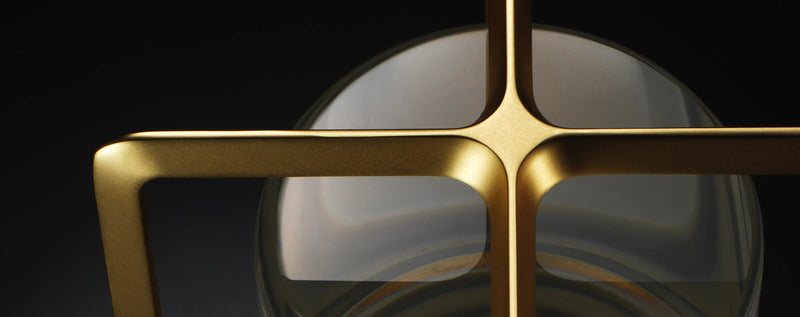

The "+" icon part (cage) is made of zinc die-cast.
![](http://ambientec.co.jp/cdn/shop/files/9.webp?v=1718004107&width=800)

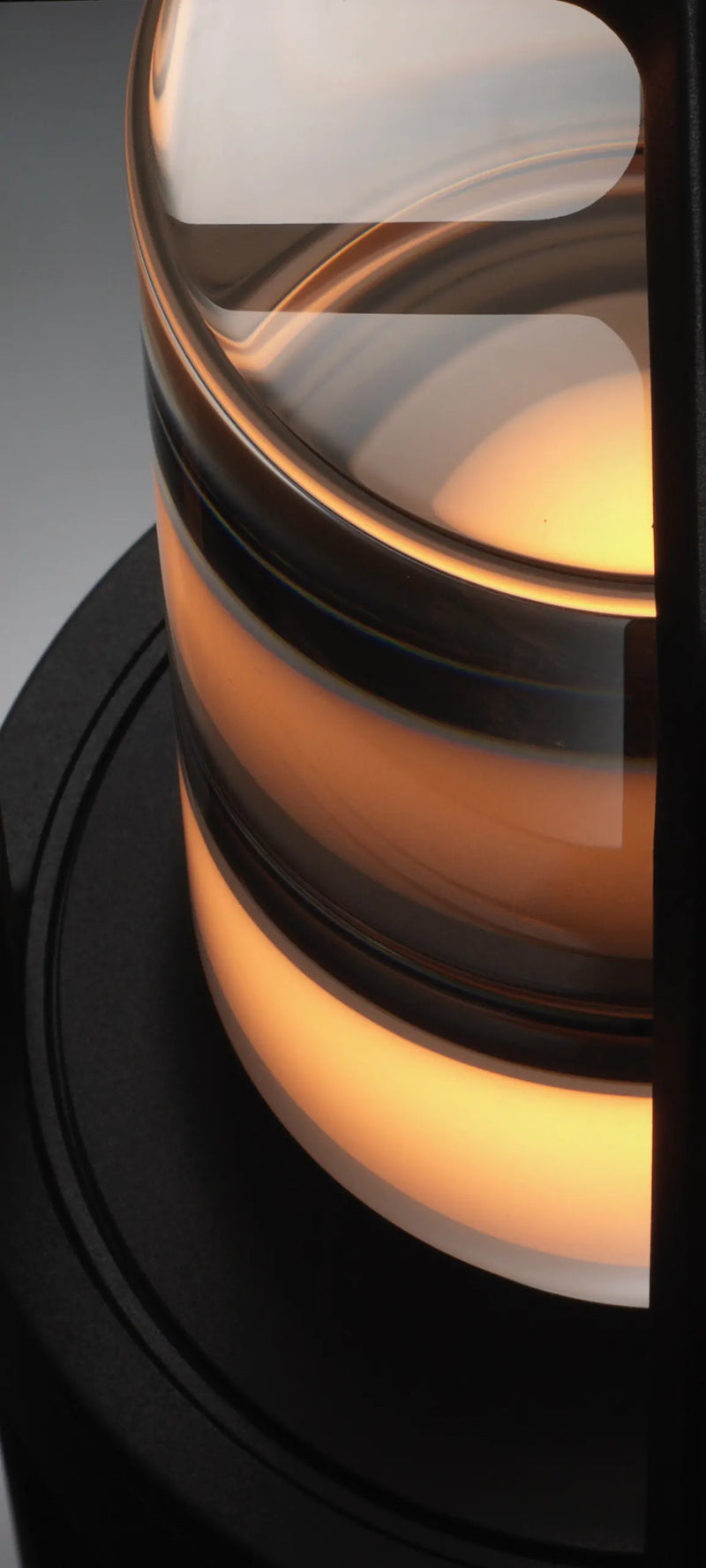

Crystal glass and a newly developed LED light source provide unprecedented transparency and high-quality lighting.
![](http://ambientec.co.jp/cdn/shop/files/10.webp?v=1718004201&width=800)

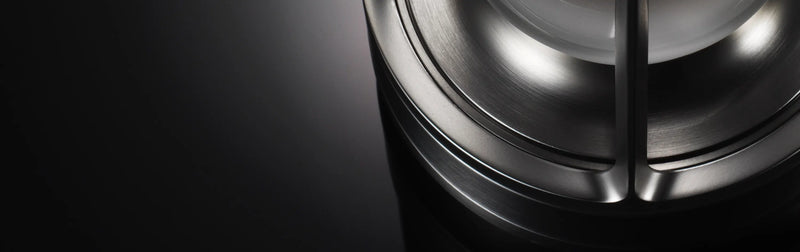

With parts carved out of metal Beautifully constructed form.
![](http://ambientec.co.jp/cdn/shop/files/11.webp?v=1718004249&width=800)
TURN+ and TURN can be used together to create a more comfortable scene.
![](http://ambientec.co.jp/cdn/shop/files/12.webp?v=1718004280&width=800)
